但Y-△接法的FS-PMM拥有两套绕组结构，绕组结构更加复杂，内层△接绕组上的环流在一定程度上会降低电机在匝间故障状态下三相的不对称性，导致其故障特征不同于传统电机的故障特性。针对Y-△接法的FS-PMM匝间短路故障，提出一种基于参数优化的变分模态分解算法的故障诊断方法。

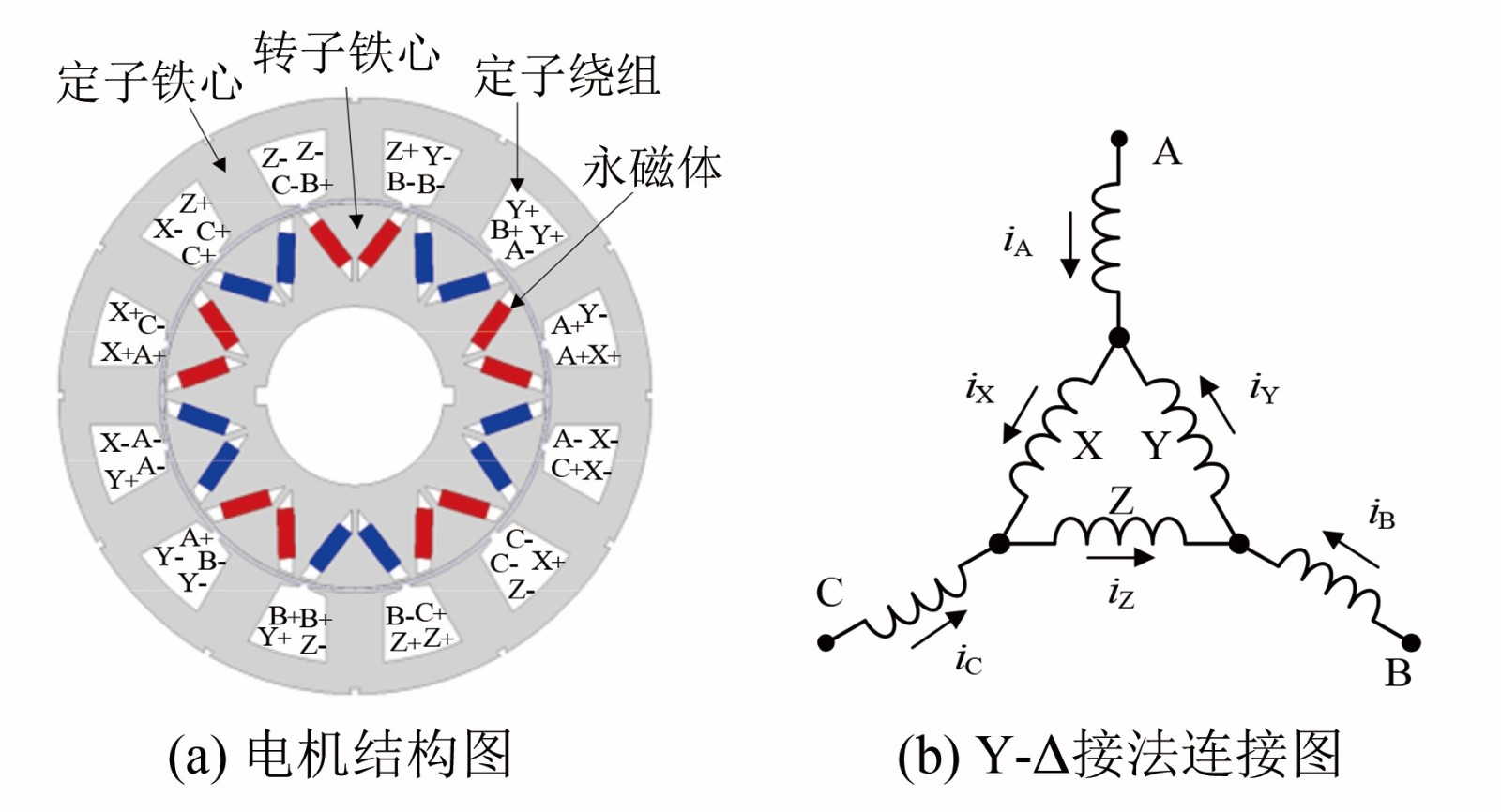

图1 Y-△接法连接图

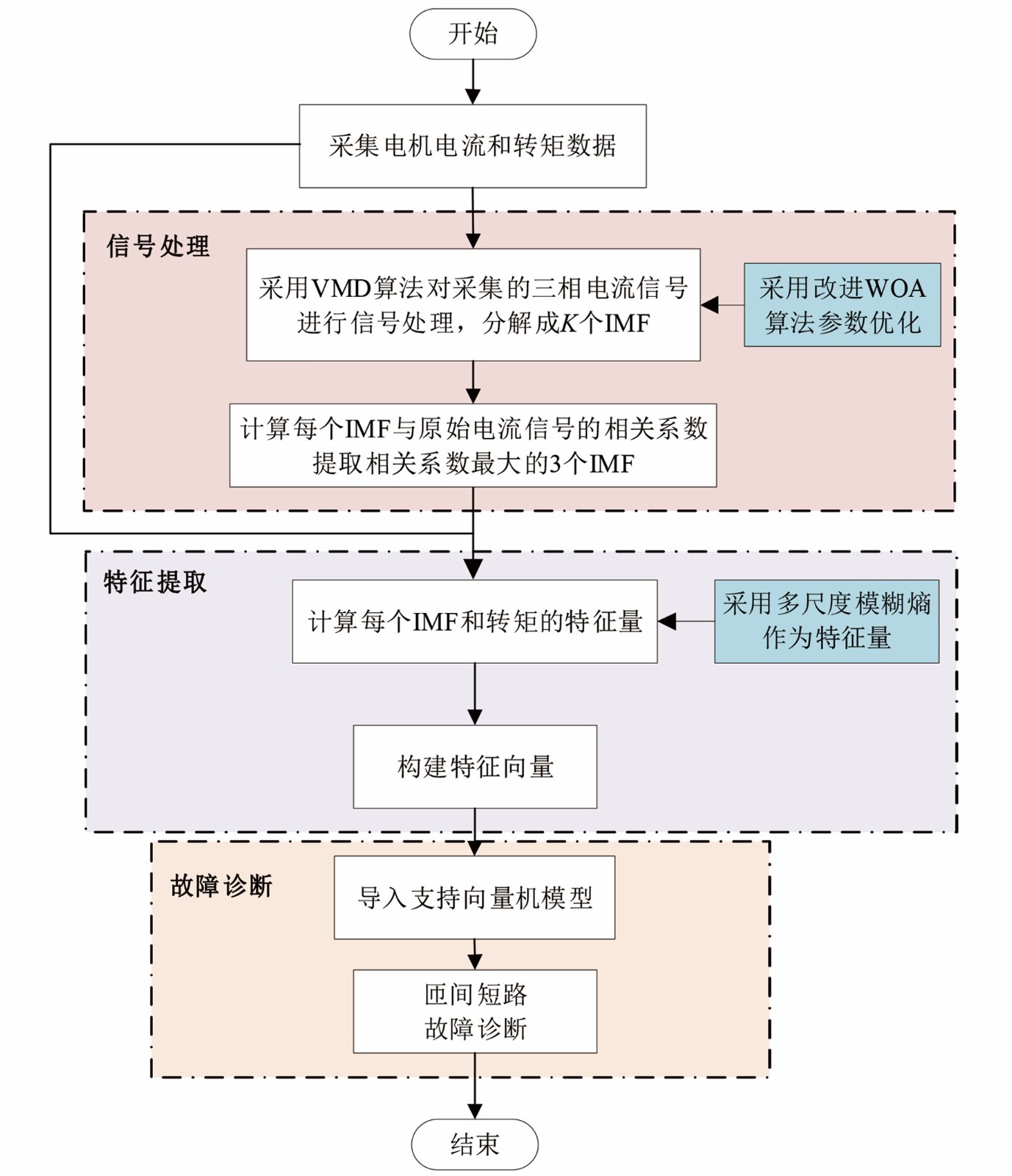

图2 匝间短路故障诊断流程图

In recent years, China's electric vehicle industry has developed rapidly. The fractional slot permanent magnet machine (FS-PMM) winding using the star-delta (Y-△) connection method can reduce the harmonic content. And it is easy to realize in motor processing, which can be well applied to the new energy vehicle industry.

However, FS-PMM with Y-△ connection has two sets of winding structures, which are more complex. The circulating current on the inner △ connection winding will reduce the three-phase asymmetry of machine in the inter-turn short circuit fault state to a certain extent. It will result its fault characteristics different from those of the traditional machine. Aiming at the inter turn short circuit fault of FS-PMM with Y-△ connection method, a fault diagnosis method based on parameter optimization variational mode decomposition algorithm is proposed.

In this paper, the equivalent circuit model of turn to turn short circuit of Y-connected and △ connected windings in Y-△ connected FS-PMM is established, and the short-circuit current at fault is derived. Secondly, the whale optimization algorithm is improved. The improved whale optimization algorithm is used to optimize the parameters of the variational mode decomposition algorithm, so as to process the current signal; Then, the multi-scale fuzzy entropy is selected as the signal feature, and the support vector machine is used to diagnose the partial inter-turn short circuit fault of Y connection method or △ connection method.

The fault diagnosis accuracy of this method is more than 95%, and it can effectively distinguish the turn to turn short circuit fault of Y-connection and △ connection.
