Research on Stator Magnetic Field Orientation Method for Quasi-Synchronous Operation of Doubly-Fed Linear Motor
Based on the analysis of aerodynamic noise characteristics and acoustic tests of self-ventilated traction motors, the main noise sources were determined, the steady-state
For high-speed maglev applications, the doubly-fed linear motor (DFLM) adopts a quasi-synchronous operation (QSO) control framework, with scalar control on the stator side and vector control on the mover side. However, as the basic requirement of the DFLM-QSO, the magnetic field orientation faces two major challenges. Firstly, under levitation conditions, the mover’s magnetic motive force (MMF) is significantly stronger than that of the stator, causing the stator’s magnetic field to be overwhelmed by the mover’s, and making it difficult to accurately determine the stator’s magnetic field angle. Secondly, to maintain wideband stability in AC levitation, harmonic injection is required in the mover current, necessitating a magnetic field orientation method with superior dynamic performance.
To address these challenges, this paper proposes a novel stator magnetic field orientation method based on a mover-consolidated α-β coordinate system, along with a corresponding parameter correction scheme. As shown in Figure 1, this method estimates the stator current in real time within the α-β coordinate system and adjusts the orientation angle of the mover’s synchronous magnetic field coordinate system through the closed-loop control, ensuring that the T-axis component of the stator current converges to zero, thereby achieving magnetic field orientation. Additionally, the parameter correction method enhances the accuracy of mover-side parameters, enabling precise extraction of the stator’s induced voltage within the mover windings, even when the induced voltage is relatively small. This method demonstrates excellent dynamic performance, maintaining stable magnetic field orientation even under harmonic injection in the mover current.

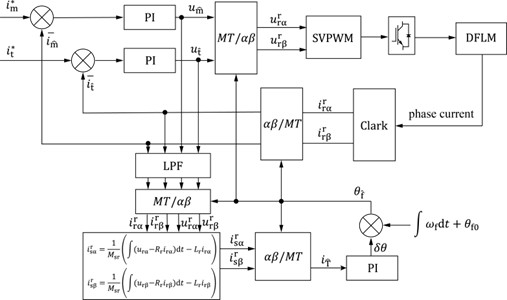

Figure.1 Block diagram of stator magnetic field orientation method
Experimental results further validate the effectiveness of this approach. As illustrated in Figure 2, the T-axis component of the stator current converges and stabilizes at 0 A during the magnetic field orientation process. When the reference current vector angles of the stator and mover are set to 0° and 90°, respectively, the oscilloscope waveforms show that the phase difference between the two currents remains precisely at 0° and 90°, confirming the accurate orientation of the stator’s magnetic field.

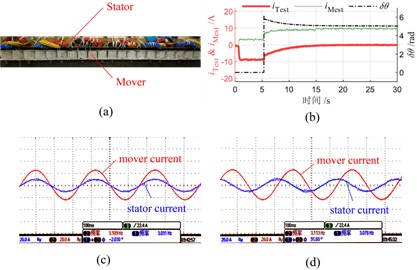

Figure.2 Magnetic field orientation verification experiment
This study effectively resolves the challenge of stator magnetic field orientation in DFLMs under high-speed maglev conditions, laying a solid foundation for decoupled control of traction, levitation, and power supply. It holds significant theoretical value and engineering potential for future high-speed maglev systems.
